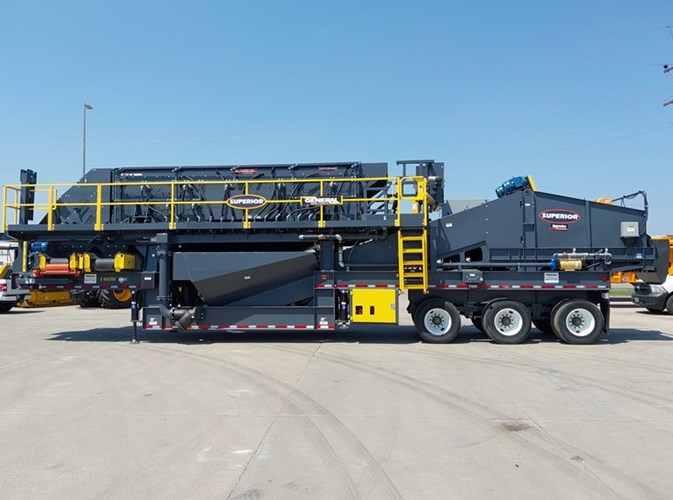

2024 Superior Washing Equipment 6203-ADWP
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR AGGREDRY WASH PLANT
Inventory ID
E00068359
Serial
2425834
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00068359
- Status: On Rent
- Make: Superior
- Model: 6203-ADWP
- Year: 2024
- Serial#: 2425834
Notes
- SUPERIOR 6203 GUARDIAN›¼® HORIZONTAL SCREEN TWIN 36" SCREWS PORTABLE WASH PLANT EQUIPPED AS PER BELOW:
- PLANT SPECIFICATIONS:
- CONSTRUCTION - MAIN FRAME CONSTRUCTED OF WIDE FLANGE STRUCTURAL BEAMS
- DISCHARGE CHUTE - MANUAL ROLLAWAY CHUTE CONSTRUCTED OF 1/4" STRUCTURAL STEEL
WITH 1/4" WELD-IN AR 400 LINER
- RUBBER FLASHING - NOT INCLUDED
- BLENDING CAPABILITY - 1/4 PANEL BLENDING GATES IN DISCHARGE CHUTE SYSTEM
- TOP DECK DISCHARGE - OVER THE KINGPIN OR BLENDS DOWN TO MIDDLE DECK CROSS
CONVEYOR
- MIDDLE DECK DISCHARGE - TO MIDDLE DECK CROSS CONVEYOR OR BLEND DOWN TO BOTTOM
DECK CROSS CONVEYOR
- BOTTOM DECK DISCHARGE - TO BOTTOM DECK CROSS CONVEYOR OR BLEND UP TO MIDDLE
DECK CROSS CONVEYOR
- WALKWAY - WALKWAY AROUND BOTH SIDES AND FEED END OF SCREEN: ENDS WHERE SCREEN
MEETS DISCHARGE CHUTE
- OBSERVATION PLATFORM - NOT INCLUDED
- WALKWAY ACCESS - ACCESS TO BOTH SIDES OF CHASSIS WITH (2) FOLDING STEEP ANGLE
STAIRS
- ACCESS GATES - (2) SELF CLOSING HINGED GATES AT ALL WALKWAY ACCESS POINTS
- SLURRY HOPPER - SCREEN FEED SLURRY HOPPER FOLDS HYDRAULICALLY FOR TRANSPORT
WITH (2) 2.5" WATER LINES
- WYE STRAINER - BOLT-ON WYE STRAINER FOR FRESH WATER SUPPLY TO PREVENT DEBRIS
FROM ENTERING WASH SYSTEM
- GREASE PACKAGE - NOT INCLUDED
- TOOL BOX - 48" X 12" X 16" ALUMINUM TOOL BOX
- CORD HOLDERS - NOT INCLUDED
- SAFETY TIE OFF - OVERHEAD SAFETY TIE OFF POSTS WITH CABLE BETWEENTWO POSTS
- PAINT - STANDARD SUPERIOR PAINT - GRAPHITE GRAY (RAL 7024) WITH SAFETY YELLOW
GUARDING AND HANDRAIL
- SIGN PLATE - GENERAL SIGN PLATE INCLUDED - CHASSIS SPECIFICATIONS:
- AXLE - TRIDEM AXLE WITH (12) 11RX22.5 RADIAL TIRES
- SUSPENSION - SPRING SUSPENSION
- BRAKES - COMPLETE AIR BRAKE PACKAGE
- FIFTH WHEEL - INCLUDED
- LIGHTS - BRAKE AND DIRECTIONAL SIGNALS
- MUD FLAPS - INSTALLED BEHIND TRANSPORT WHEELS
- CRIBBING LEGS - (6) FIXED STRUCTURAL STEELCRIBBING LEGS
- LANDING GEAR - (4) HYDRAULIC LIFT-ONLY LEVELING LEGS WITH 9 HP HONDA POWER
UNIT
- TOW EYE - NOT INCLUDED
- LEVEL ASSIST - NOT INCLUDED
- UNDERFLUME CONSTRUCTION - 1/4" AR PLATE
- UNDERFLUME SPRAY BARS - LOCATED AT FEED AND DISCHARGE POINTS
- MANIFOLD - 8" BOLT FLANGE FOR FRESH WATER HOOKUP (CUSTOMER RESPONSIBLE FOR
FRESH WATER PLUMBING TO MANIFOLD)
- MANIFOLD DISTRIBUTION - DISTRIBUTES WATER TO SCREEN SPRAY BARS SLURRY HOPPER
FMW WASH BACKAND FINES HOPPER - CROSS CONVEYOR SPECIFICATIONS:
- CROSS CONVEYORS - (2) 30" X 12- LONG SLIDE-IN REVERSING CROSS CONVEYORS
- DRIVE - CLASS I HEAD END
- GEAR REDUCER - DODGE SHAFT MOUNT
- MOTOR - 7.5 HP MOTOR(S) TEFC
- DRIVE PULLEY -10" DIAMETER DIAMOND LAGGED CEMA CROWN FACED DRUM
- TAIL PULLEY - 10" DIAMETER CEMA WING PULLEY
- BEARINGS - DODGE
- IDLERS - CEMA C 5" DIA. ROLLS SEALED FOR LIFE BALL BEARINGS 20›¼°
- BELTING - 3 PLY 3/16 X 1/16 330 PIW
- BELT SPLICE - FACTORY VULCANIZED BELT SPLICE(S)
- BELT SCRAPER - (1) EXTERRA PRIMARY SCRAPER PER CROSS CONVEYOR - SUPERIOR 6X20-3 DECK HORIZONTAL SCREEN:
- RIGHT HAND DRIVE
- COIL SPRINGS
- 5- PANELS
- SIDE TENSION ON ALL DECKS
- OPERATESIN TRUE HORIZONTAL POSITION
- 1200 RPM 40 HP TEFC
- MANUALLY FOLDING MOTOR FOR PLANT TO TRAVEL AT 12- 6"
- COIL SPRINGS
- 24" FEDDBOX WITH 1/4" AR LINERS - MATERIAL WASHER SPECIFICATIONS:
- SUPERIOR TWIN 36" AGGREDRY DEWATERING WASHER
- SCREW SPEED 20 RPM
- CAPACITY: UP TO 200 STPH
- RUBBER WEAR SHOES
- SCREW MOTOR: (2) 15 HP TEFC
- GEARBOX: DODGE SHAFT MOUNT
- DEWATERING SCREEN: INTEGRATED 5X10
- DEWATERING SCREEN MOTORS: (2) 11.4 HP ELECTRIC VIBRATORS - - GUARDING - FOR ALL DRIVE AND TAIL PULLEYS GUARDS MAY NOT MEET ALL LOCAL
CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING INSPECTED
